Place of Origin: | Shanghai,China |
Brand Name: | OEM |
Certification: | ISO9001-2008 |
Model Number: | OEM |
Minimum Order Quantity: | 1 set |
---|---|
Price: | $3000-$10000 |
Packaging Details: | wooden case for mould, air bubble film for products |
Delivery Time: | 35 days |
Payment Terms: | 50% advanced payment, the balance before shippment, T/T |
Supply Ability: | 500sets/year |
Mold Material: | Aluminum Casting A356 | Mold Life: | 10000 Pieces |
---|---|---|---|
Surface Treatment: | Smooth Surface, Sandblasting | Wall Thickness: | 8-10mm |
Design Software: | UG,solidworks | Lead Time: | 35 Days |
Package: | Wooden Case |
Product Name
|

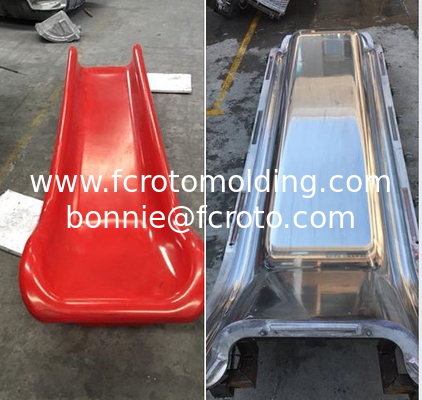

rotational slide mold, aluminum slide mold rotational molding |
Material
|
aluminum A356, aluminum 6061t6( aluminum block)
|
Surface treatment
|
Polish, Sandblasting, Telfon coating
|
Wall thickness
|
8-10mm
|
Mould life
|
Over 5000 shots
|
Mould Process
|
Design, foam, casting, CNC process, Polish, Frame, Test, Packing
|
Platic Material
|
LLDPE, MDPE, HDPE, CROSS LINKED PE
|
Our service
|
help you design with our professional experience for rotational mold
|
1. About Rotational Moulding: Rotational moulding, known also as rotomolding or rotocasting, is a process for manufacturing hollow plastic products. For certain types of liquid vinyls, the term slush molding is also used. Rotational molding has particular advantages in terms of relatively low levels of residual stresses and inexpensive molds. Rotational molding also has few competitors for the production of large (> 2 m3) hollow objects in one piece. Rotational molding is best known for the manufacture of tanks but it can also be used to make complex medical products, toys, leisure craft, and highly aesthetic point-of-sale products.
The process begins with specially developed and uniquely applied resins. They can include plastisols, polyethylene, polycarbonate, acetate butyrate, polyamide, elastomers, polyurethane, polypropylene, ethylene vinyl acetate and fluorocarbons. Some of the most advanced work is being done with cross-linked polyethylene and even nylon.
The principle of rotational molding of plastics is simple. Basically the process consists of introducing a known amount of plastic in powder, granular, or viscous liquid form into a hollow, shell-like mold.The mold is rotated and/ or rocked about two principal axes at relatively low speeds as it is heated so that the plastic enclosed in the mold adheres to, and forms a monolithic layer against, the mold surface. The mold rotation continues during the cooling phase so that the plastic retains its desired shape as it solidifies. When the plastic is sufficiently rigid, the cooling and mold rotation is stopped to allow the removal of the plastic product from the mold. At this stage, the cyclic process may be repeated. The basic steps of (a) mold charging, (b) mold heating, (c) mold cooling, and (d) part ejection are shown in Figure below.
A: We are factory.
A: Generally it is 35 days after confirming drawing and receive advanced payment.
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
A: 30% advanced payment, the balance before shippment.
